Description
Product Description:
Structure: the motor, reducer device and other components are all assembled in a closed cylinder, only the two ends of the support shaft and conveying equipment to be fixed, conveying equipment operation and operation becomes more secure.
Feature:Saving space, because the drum motor puts all the parts in a cylinder, so the space occupied by the conveyor equipment using it is reduced. Multi-functional unloading machine, used for conveying semi-finished and finished products in the conveying factory, saving a lot of manpower and material resources, convenient and fast, and improve the efficiency of the operation.
Use: Suitable for product transportation in most industries. Widely used in ports, wharves, stations, airports, warehouses, mines, post and telecommunications, electrical appliances, light industry, food and other industries, suitable for the transport and loading and unloading of goods, greatly reducing the distance of manual handling of materials, improving work efficiency, reducing labour intensity, reducing the rate of damage to the goods, shortening the loading and unloading time.
| Tube Diameter | Tube Length | Length of conveyor ladder | Roller spacing | framework size |
| 50 | 100-1000 | 1000-3000 | 75-100 | Customized according to customer requirements |
| 57 | 100-1000 | 1000-3000 | 75-150 | |
| 60 | 100-1000 | 1000-3000 | 100-200 | |
| 76 | 100-1000 | 1000-3000 | 100-200 |
Product details
1、Bearing weight
Suitable for all kinds of boxes, pallets, cardboard and other heavy goods;

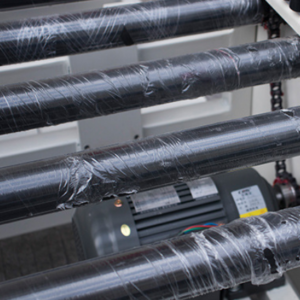

2、Covered rubber roller
Rubber-coated rollers increase friction and wear resistance and also prevent scratching of the product;

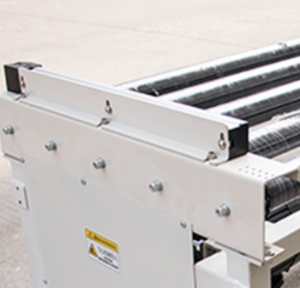

- Edge protection bracket
The edge guard is made of 3.0 thickness steel plate, laser bending and baking varnish, with accurate hole position, good anti-rust performance, solid and durable, not easy to be deformed, and the bracket is made of steel welding.

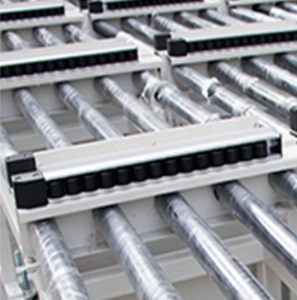

4、Aluminium alloy slide rail
The slide rail is easy to install, easy to facilitate the smooth and convenient items, prevent the product from falling, rotate flexibly and improve efficiency.

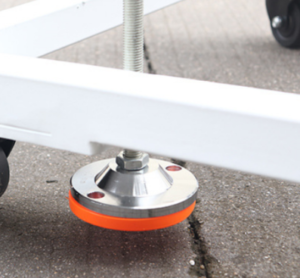

- Heavy duty foot ring
Full carbon steel foot ring, solid fixed heavy duty foot ring, high load bearing capacity, vertical lift adjustment, good stability and balance of the product.

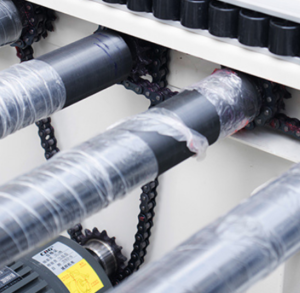

6、High quality chain
Adopting high quality chain, chain elasticity according to the standard, can be single-row chain and double-row chain drive, can be customised according to customer requirements.
