Telescopic conveyor

Description

Product Description:

Structure: it can be freely retracted in the length direction and control the length of the conveyor at any time. Telescopic conveyors are mainly divided into roller type and belt type. The roller type will be introduced specifically below.

Feature:

1, 360 ° rotation, telescopic free, height adjustable;

2、Suitable for a variety of terrain use, transport very smooth without running;

3, liftable bracket design, suitable for climbing use, suitable for indoor and outdoor various environments loading and unloading;

4, engage in transport efficiency, save time and energy more money;

5, Free stretching, storage does not take up too much space, adjustable length, flexible layout, easy to use.

6, Detailed parameters and dimensions can be customised upon request.

Note: For longer pull-off distances, the length of the goods should not be less than 260mm (to ensure contact with the three axes)

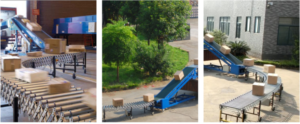

Use: Shorten the distance of manual transportation of materials, reduce the cost of loading and unloading, improve work efficiency, telescopic conveyor is firstly used in logistics express, tobacco industry.

Power roller telescopic line product parameter description：

Product specification: width (standard) 600mm/ 800mm

Line support: frame (round tube) steel wall thickness 1.5 – 3mm

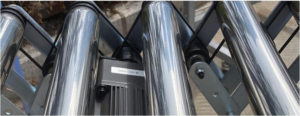

Roller material;: 50 diameter 201 stainless steel roller, 9pcs/metre

Expansion piece: bending structure, steel plate stamping parts, to increase the load-bearing capacity, bolt links

Casters: universal casters with brakes, stable conveyor

Drive belt: standard brand: the United States Gates Duoqi belt

Motor: standard brand: Miley 120W, voltage 220V (can be customised)

Line rate: 0~30m/min, 1 motor for every 1.2 metres, synchronous with the whole group of motors.

Working length: unlimited

Working width: standard 600mm \ 800mm, can be customised width

Working height: 1. 45-65cm 2. 57-86cm 3. 75-115cm 4. 95-160cm 5.130-230cm

Load capacity: standard 60kg~80 kg/m

Product experience

1、Using branded high power inverter, safe and durable to use;

2, 90W large motor, high power and long life;

3, 3.5mm345 steel plate stamping cross arm, corrosion resistance is not easy to break and deformation, high load-bearing strength;

4, efficient work, save manpower time and transport costs, convenient and practical, nice appearance

Telescopic roller conveyor use specification

1, telescopic roller conveyor should be applied before checking the components of the roller is not bent deformation, support frame and other components of the joint dowel is loose, found that the problem is immediately adjusted and resolved, clear no problem before application.

2, the staff in the application of telescopic roller conveyor, should first check whether the special tools, raw materials, dirt piled up in the conveyor network, found that there are words first removed, in order to prevent harm to the normal operation of all telescopic roller conveyor.

3, application should avoid telescopic roller conveyor load start.

4, the user should understand the telescopic roller conveyor rolling bearings, fill in time with lubricant, in accordance with the rolling bearings to carry out the actual operation of the application of the work standards.

5, the staff found that the direction of the conveyor belt deflection, should immediately take some effective measures to correct, to facilitate the telescopic roller conveyor can be all normal operation.

6, the staff daily before the end of the telescopic roller conveyor shutdown, to eliminate the conveyor work area on the day residual out of a variety of waste materials, to facilitate better application in the future.
